Control X Essentials

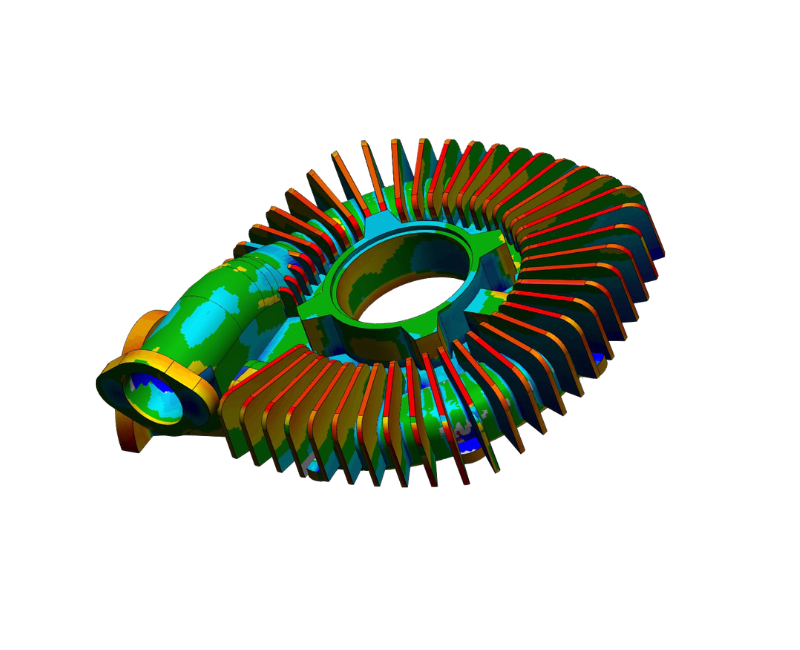

An affordable inspection software lowering the barriers to professional scan to cad analysis

Control X Essentials - Free Trial Book a demo

Key Features

  • Powerful inspection tools in an intuitive software solution
  • Use Control X’s proven suite of inspection tools to improve inspection efficiency
  • Repeatable inspection routines add confidence to your results
  • Affordable inspection tools for everyone



Control X Essentials

Training

Geomagic Control X training is a two-day course covering the editing of scan data, the different options for aligning scan data to CAD/Mesh reference data, analysis, creating dimensions and GD&T, creating reports, and workflows for multiple inspections. There is also time spent on the practical application of the software, this time is usually spent creating workflows specific to the client.

Day 1

  • User Interface
  • Editing scan data
  • Aligning multiple scans
  • Creating reference geometry
  • Pairing manager
  • Aligning to CAD/Reference data

Day 2

  • Analysis
  • 3D Dimensions and GD&T
  • 2D Dimensions and GD&T
  • Creating Reports
  • Repeat inspections

Day 2 Continued

  • Creating client specific workflows
  • Creating custom user interface

Expertise

We have extensive experience using Geomagic software in different industries, as well as providing training so we are well placed to help.

UK Platinum Partner for 3D Systems

OR3D are a Platinum Partner to 3D Systems, providing software, support and training.

Training Partner

As the UK's only accredited training partner for 3D Systems we can provide you with the knowledge to help you through difficult projects.

Need Support?

We can provide the advice needed to keep you moving with difficult projects if you have a software or workflow problems.
