Reverse Engineering

At OR3D, we have built a reputation for reverse engineering across all sectors. Known for taking on the challenging items when nobody else is willing or capable. Whether you need CAD of your components representing the as-is condition or the design intent. OR3D will work closely with you to ensure the model you receive is entirely fit for purpose. We can even improve on existing designs and ensure the part is ready for manufacture.

Reverse Engineering solutions

• Precision Scanning: We capture intricate 3D data of existing components with unparalleled accuracy, ensuring that every detail is captured.

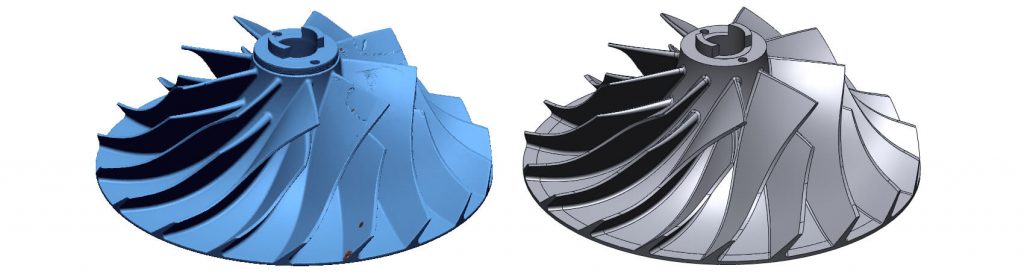

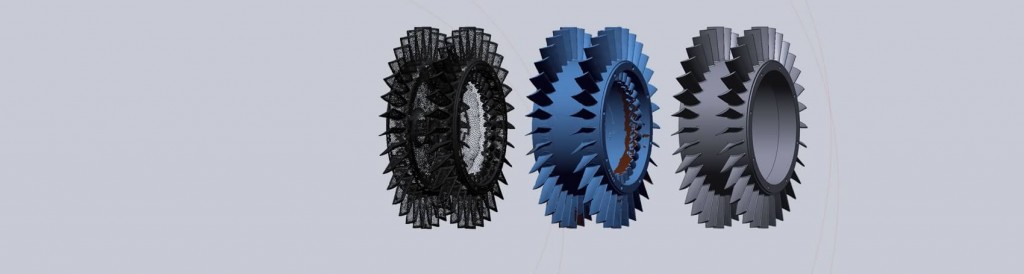

• Digital Modelling: Our skilled team transforms the captured data using Geomagic Design X software into precise digital models, meticulously revealing the design behind each component.
• Design Optimisation: Through iterative analysis and refinement, we optimise the digital models to enhance performance, functionality, and manufacturability.
• Prototyping Support: With the refined digital models, we facilitate rapid prototyping, enabling quick validation and iteration of design concepts that align with the original design.
• Legacy Part Recreation: Whether it’s recreating obsolete components or enhancing existing designs, our Reverse Engineering solutions ensure seamless replication while preserving and even improving upon the original design.
