Nominal Actual Comparison

Nominal Actual Comparison can be used to assess the accuracy, deviation, and tolerance of an object, and identify any errors or defects in its manufacturing process.

Nominal Actual Comparison

Nominal Actual Comparison is a method of comparing the nominal dimensions of an object, such as its design specifications or CAD model, with its actual dimensions, obtained from CT scanning or other measurement techniques. Nominal actual comparison can be used to assess the accuracy, deviation, and tolerance of an object, and identify any errors or defects in its manufacturing process.

Visualising a Nominal Actual Comparison

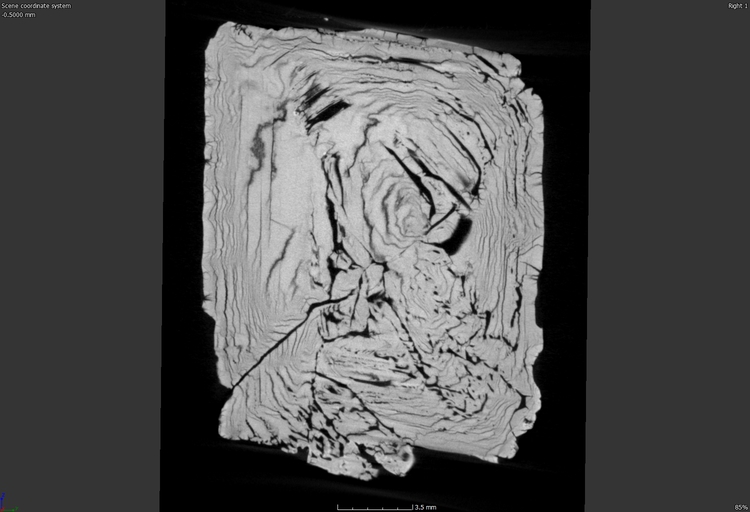

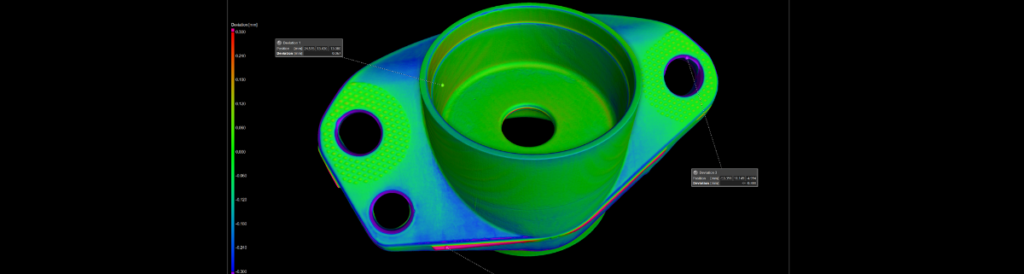

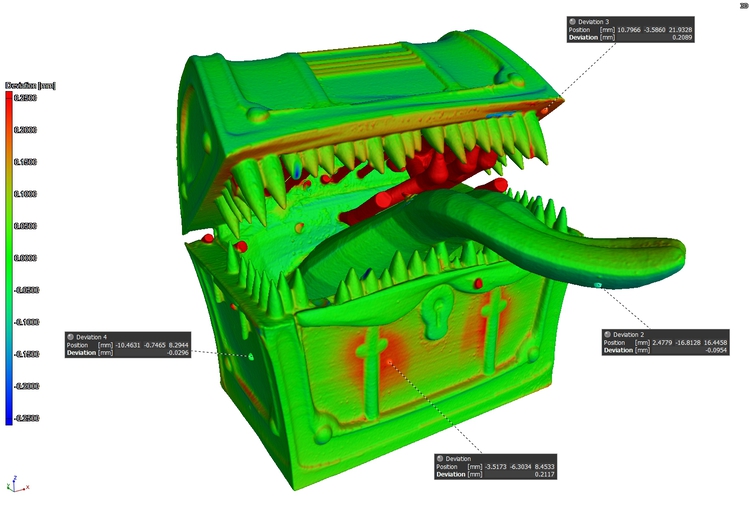

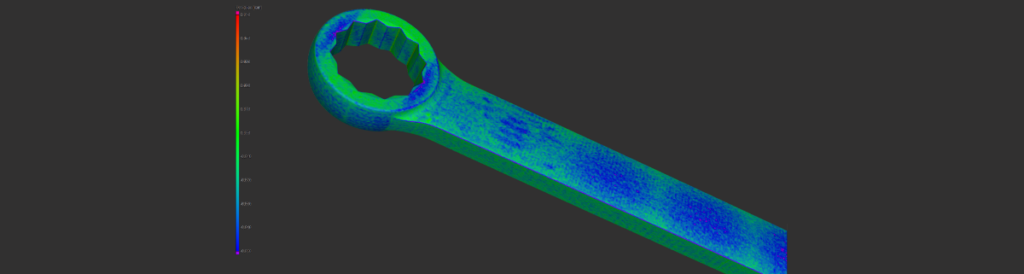

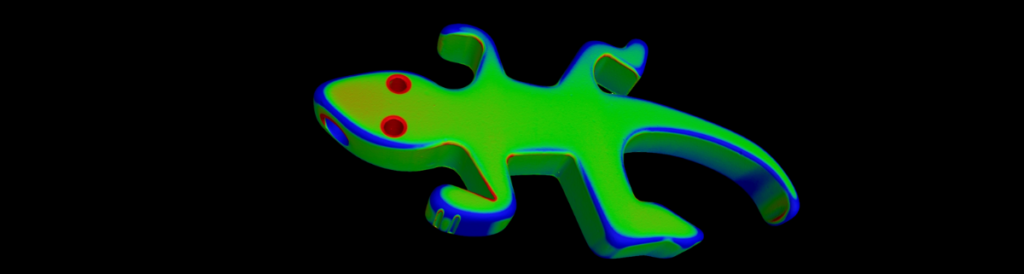

Most commonly a 3D compare is displayed as a colour map where the colours represent the magnitude of deviation between the reference and measured objects. A colour scale between red and blue is usually used where green lies in the middle identifying areas where there is minimal deviation.

The comparison can also be visualised in 2D where a coloured whisker plot is used.

Discover the Benefits of Nominal Actual Comparison Analysis

Manufacturing Quality Control

This process helps detect manufacturing defects, deviations, or variations early in the production process, enabling corrective actions to be taken to maintain product quality and meet customer requirements.

Engineering Design Verification

Engineers use Nominal Actual Comparison to verify the accuracy of design specifications and prototypes across various industries, including aerospace, automotive, consumer electronics, and industrial equipment.

Construction and Architecture

In construction and architecture, Nominal Actual Comparison ensures that built structures conform to design plans and specifications.

target-icon-svg

Metrology and Calibration

Nominal Actual Comparison is essential in metrology and calibration processes to verify the accuracy and reliability of measurement instruments and systems.
