VGinLINE

The Software for Automated CT Inspection.

What is VGinLINE?

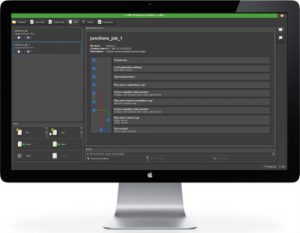

VGInline is a fully automated solution that allows users to perform CT-based inspection tasks in production environments. Users can define inspection plans and workflows for different parts and batches, and then execute them automatically with minimal human intervention. VGInline can also generate reports and statistics based on the inspection results and export them to various formats. VGInline is a fast and reliable tool for quality control and process optimisation of CT-based inspection processes.

Automation for Every Requirement

VGinLINE automatically or semi-automatically inspects your parts with a recurring analysis pattern:

Broad Feature Set

VGinLINE Complete offers all relevant features of VGSTUDIO MAX, i.e., coordinate measurement, wall thickness analysis, nominal/actual comparison, defect detection (pores, voids, inclusions), fiber orientation analysis, and foam structure analysis.*

You may also be interested in

vgmetrology-featured

VG Metrology

A software for CT data metrology, allowing users to perform dimensional measurements and compare CT data with CAD models

vgstudio-max-featured

VG STUDIO MAX

A comprehensive software for CT data analysis and visualisation, covering applications such as defect detection, metrology, material properties, and simulation.

Volume Graphics nut image

VGSTUDIO UK TRAINING

The two day local training course is designed to provide beginners with comprehensive knowledge and practical skills in using VGStudio Max; a powerful software for CT data analysis.

Volume Graphics software can be used for various applications that benefit from the non-destructive and three-dimensional nature of CT data. Some of the applications are:

Defect Detection

Users can identify and characterise internal and external defects, such as cracks, porosity, inclusions, and geometry deviations.

Metrology

Users can perform accurate and traceable dimensional measurements and compare CT data with CAD models or reference parts.

target-icon-svg

Material Properties

Users can determine and visualise material properties, such as density, fiber orientation, porosity, and stress-strain behavior.

Simulation

Users can use CT data as a basis for simulating physical phenomena, such as fluid flow, heat transfer, mechanical stress, and deformation.
